Input/Output Formats

BDF Input Format

BDF supports three input formats: Easy Input, Advanced Input, and Mixed Input. Easy Input is user-friendly with a low barrier to entry, ideal for beginners. Advanced Input provides precise control over BDF modules. Mixed Input combines Easy Input with Advanced Input elements, offering convenience while enabling advanced functionality. Beginners can use Easy Input for most tasks, while users with quantum chemistry knowledge can leverage Advanced Input for deeper control.

Note

  • Input is case-insensitive except for filenames, shell commands, and environment variables. Module names, keywords, and values are case-insensitive.

BDF Easy Input

Example: Water molecule single-point energy calculation:

#!H2O.bdf
B3lyp/3-21G

Geometry  # Atomic coordinates in Angstrom
O 0.00000    0.00000    0.36827
H 0.00000   -0.78398   -0.18468
H 0.00000    0.78398   -0.18468
End Geometry

Easy Input has three blocks:

First Block Single line starting with #! followed by the script name (e.g., #!name.bdf). Can include descriptive text.

Second Block From line 2 to the line before Geometry. Specifies calculation parameters (method, basis, functional, charge, multiplicity). Keywords are space-separated; values follow =. Multiple values use commas. Lines starting with # or content after # are comments.

Third Block From Geometry to End Geometry. Defines molecular structure (see Molecular Structure Input Format).

Tip

  • Blank lines (except within Geometry...End Geometry) are optional but improve readability.

BDF Advanced Input

Advanced Input uses a module-driven + parameter-control format:

$bdfmodule1
# Comment
Keyword1
  value # inline comment
Keyword2
  value
  ...
$end

%cp $BDFTASK.scforb $BDF_TMPDIR/$BDFTASK.inporb
$bdfmodule2
Keyword1
  value
Keyword2
  value
  ...
$end
Description:

  • Modules execute sequentially. Each module starts with $modulename and ends with $end. Module names (e.g., COMPASS, SCF) are defined in $BDFHOME/database/program.dat.

  • Parameter Control: Keywords and values follow keyword + value format. Values start on the next line (single/multi-line).

  • Comments: Lines starting with # or *, or content after #.

  • Shell Commands: Lines starting with %.

  • Complex data blocks: Defined between &database...&end (e.g., FLMO fragment definitions).

Example: Water molecule calculation:

#Example for BDF advanced input
$compass
Title
 Water molecule, energy calculation
Geometry
O 0.00000    0.00000   0.36827
H 0.00000   -0.78398   -0.18468
H 0.00000    0.78398   -0.18468
End geometry
Basis # Basis set
 3-21G
Group # C2v point group (auto-detected; used for D2h subgroups)
 C(2v)
$end

$xuanyuan
$end

$scf
RHF # Restricted Hartree-Fock
$end

%cp $BDF_WORKDIR/$BDFTASK.scforb $BDF_TMPDIR/$BDFTASK.inporb
$scf
RKS # Restricted Kohn-Sham
DFT
 B3lyp     # Note: Differs from Gaussian's B3LYP
Guess
 Readmo    # Read orbitals as initial guess
$end
_images/BDFpromodules.png

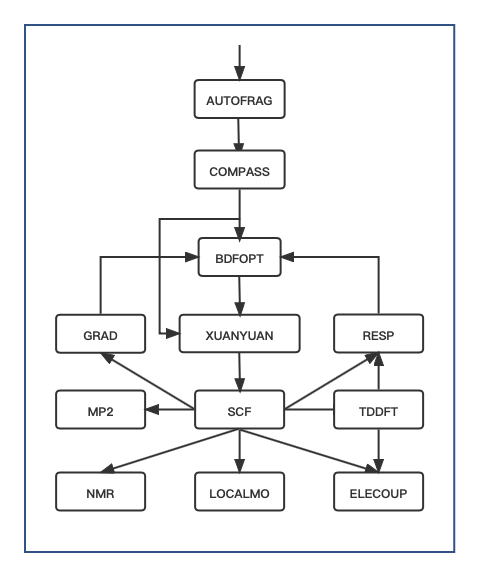

Fig. 1 BDF Module Execution Flow

Tip

  • Modules execute in order per the flow diagram. Most tasks use a subset (e.g., no AUTOFRAG for standard SCF).

  • Complex tasks (e.g., geometry optimization) involve iterative module calls (e.g., XUANYUAN → SCF → RESP).

  • Easy Input files are translated to Advanced Input in $BDF_TMPDIR/.bdfinput.

Table 1 BDF Modules and Functions

Module

Function

AUTOFRAG

Molecular fragmentation (iOI-SCF/FLMO)

COMPASS

Geometry, basis set, symmetry preprocessing

XUANYUAN

Atomic orbital integrals

BDFOPT

Geometry optimization

SCF

Hartree-Fock/Kohn-Sham SCF

TDDFT

Time-Dependent DFT

RESP

Gradients (HF/KS/TDDFT)

GRAD

Hartree-Fock gradients

LOCALMO

Molecular orbital localization

NMR

NMR shielding constants

ELECOUP

Electron coupling, localized excited states

MP2

Møller-Plesset perturbation theory (MP2)
Table 2 Advanced Input Syntax

Syntax

Description

$modulename…$end

Module control block (modules in $BDFHOME/database/program.dat)

#

Line comment or inline comment (after #)

Line comment (at start of line)

%

Shell command (executes after %)

&database…&end

Complex data block (e.g., FLMO fragments)

BDF Mixed Input

Combines Easy Input convenience with Advanced Input precision:

#!name.bdf
Method/Functional/Basis Keyword=Option Keyword=Option1,Option2
Keyword=Option

Geometry
Molecular structure
End Geometry

$modulename1
...       # Comment
$End

$modulename2
...
$End
Structure:

  • Blocks 1-3: Easy Input format.

  • Block 4 (after End Geometry): Advanced Input format (highest priority).

Example: Water cation:

#!H2O+.bdf
B3lyp/3-21G iroot=4

Geometry
O 0.00000    0.00000   0.36827
H 0.00000   -0.78398   -0.18468
H 0.00000    0.78398   -0.18468
End Geometry

$scf
Charge # Set charge to +1
 1
molden # Output orbitals in Molden format
$end

Note: Advanced Input keywords override Easy Input settings (e.g., charge in $scf overrides command-line charge).

Molecular Structure Input Format

Molecular structure is defined between Geometry and End geometry. Formats: Cartesian coordinates, internal coordinates, or external XYZ file.

Warning

Default unit: Ångstrom (Å). Use unit=Bohr in Easy Input (command line) or Advanced Input (COMPASS module) for Bohr units.

Easy Input example (H₂ bond length: 1.50 Bohr):

#! bdftest.sh
HF/3-21G unit=Bohr

Geometry
  H  0.00 0.00 0.00
  H  0.00 0.00 1.50
End geometry

Advanced Input example:

$compass
Geometry
  H  0.00 0.00 0.00
  H  0.00 0.00 1.50
End geometry
Basis
  3-21G
Unit
  Bohr
$end

Cartesian Coordinates

Geometry # Default unit: Ångstrom
O  0.00000   0.00000    0.36937
H  0.00000  -0.78398   -0.18468
H  0.00000   0.78398   -0.18468
End geometry

Internal Coordinates (Z-Matrix)

Bond lengths (Å), angles/dihedrals (degrees):

Geometry
atom1
atom2 1   R12                  # Bond length between atom2-atom1
atom3 1   R31  2 A312          # Bond R31, angle A312 (atoms 3-1-2)
atom4 3   R43  2 A432 1 D4321  # Bond R43, angle A432, dihedral D4321 (atoms 4-3-2-1)
...
End Geometry

Water example:

Geometry
O
H  1   0.9
H  1   0.9 2 109.0
End geometry

Variables (Easy Input only):

Geometry
O
H  1   R1
H  1   R1  2  A1

R1 = 0.9                # Variable definition
A1 = 109.0
End geometry

Warning

  • Separate variable definitions from coordinates with a blank line.

Potential Energy Scan (Easy Input only):

Example 1: H₂O bond scan (20 points, step 0.05 Å):

Geometry
O
H  1   R1
H  1   R1  2  109

R1  0.75 0.05 20    # Start, step, points
End geometry

Example 2: H₂O scan with SCF restart:

#! h2oscan.bdf
B3lyp/3-21G Scan Guess=readmo

Geometry
O
H  1   R1
H  1   R1  2  A1

A1 = 109.0

R1 0.75 0.05 20
End geometry

Read Coordinates from File

Geometry
file=filename.xyz    # XYZ format file in current directory
End geometry

BDF Output Files

Additional temporary files may be generated for specific tasks.

Common Quantum Chemistry Units & Conversions

Quantum chemistry programs use atomic units (a.u.) internally. Outputs often convert to common units.

  • Energy: 1 a.u. = 1 Hartree

  • Mass: 1 a.u. = 1 mₑ (electron mass)

  • Length: 1 a.u. = 1 Bohr = 0.52917720859 Å

  • Charge: 1 a.u. = 1 e = 1.6022×10⁻¹⁹ C

  • Electron Density: 1 a.u. = 1 e/Bohr³

  • Dipole Moment: 1 a.u. = 1 e·Bohr = 2.5417462 Debye

  • Electrostatic Potential: 1 a.u. = 1 Hartree/e

  • Electric Field: 1 a.u. = 51421 V/Å

Energy Unit Conversions

1 unit =

Hartree

kJ·mol -1

kcal·mol -1

eV

cm -1

Hartree

1

2625.50

627.51

27.212

2.1947×10 5

kJ·mol -1

3.8088×10 -4

1

0.23901

1.0364×10 -2

83.593

kcal·mol -1

1.5936×10 -3

4.184

1

4.3363×10 -2

349.75

eV

3.6749×10 -2

96.485

23.061

1

8065.5

cm -1

4.5563×10 -6

1.1963×10 -2

2.8591×10 -3

1.2398×10 -4

1

Length Unit Conversions

1 unit =

Bohr

Å

nm

Bohr

1

0.52917720859

0.052917720859

Å

1.88972613

1

0.1

nm

0.188972613

10

1
